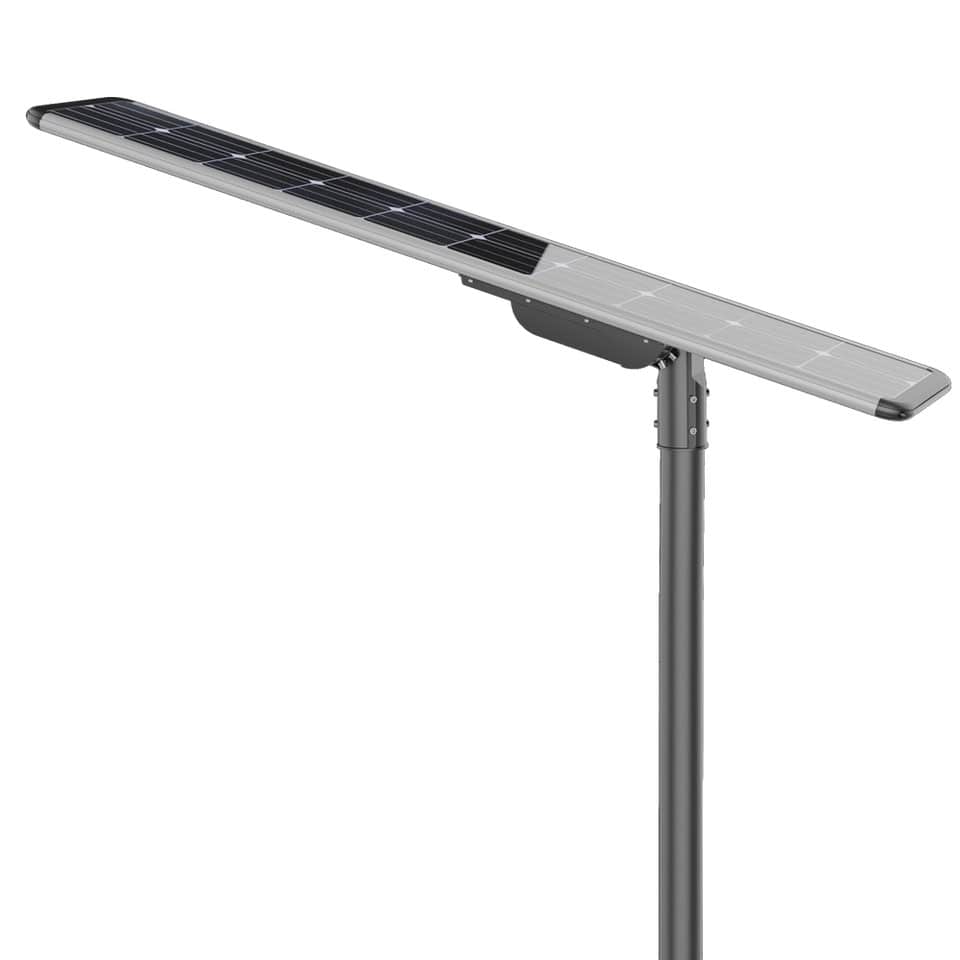

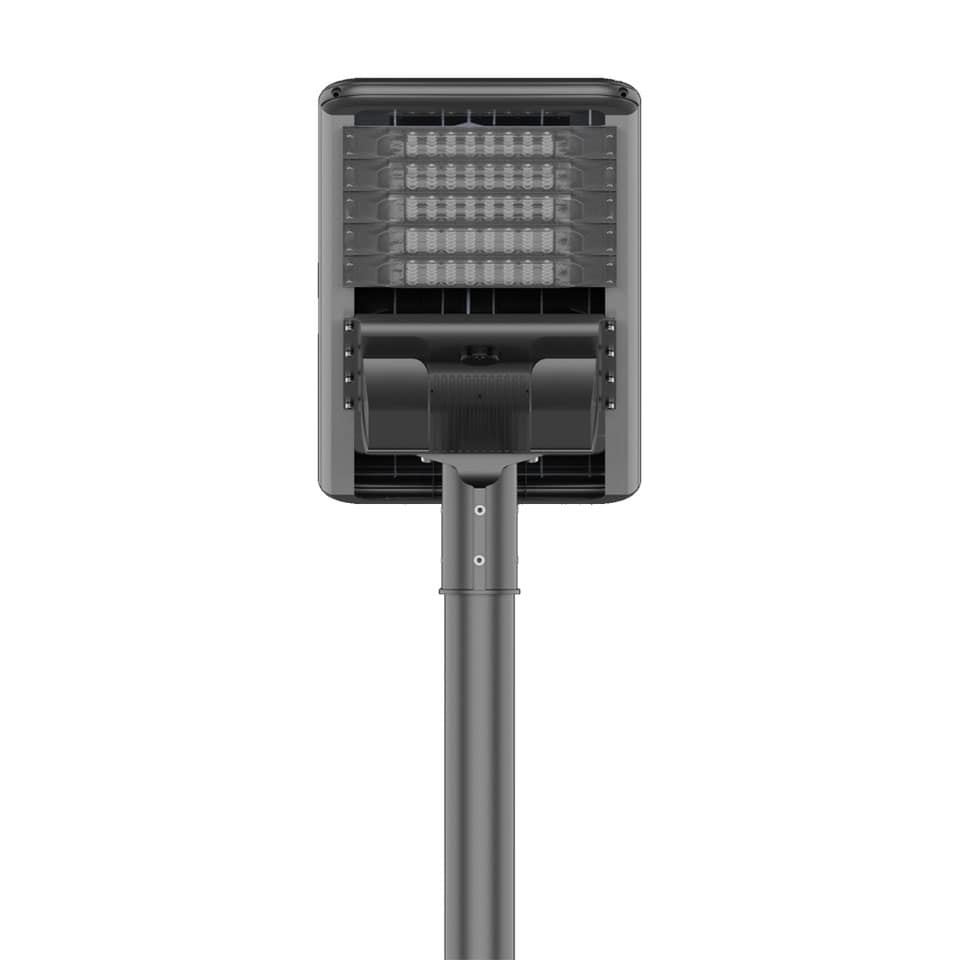

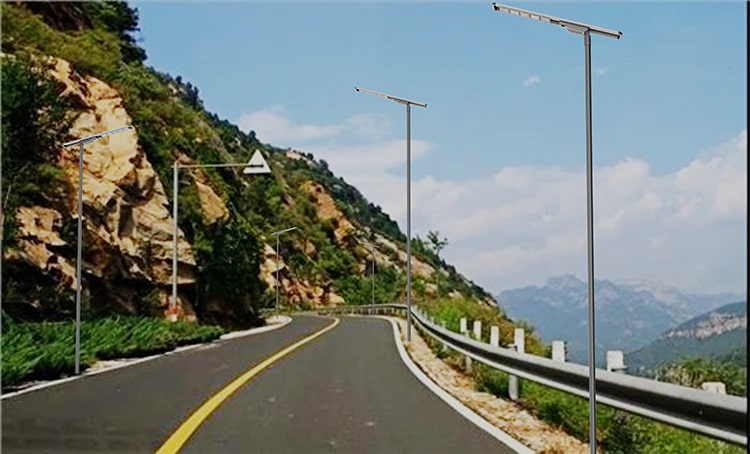

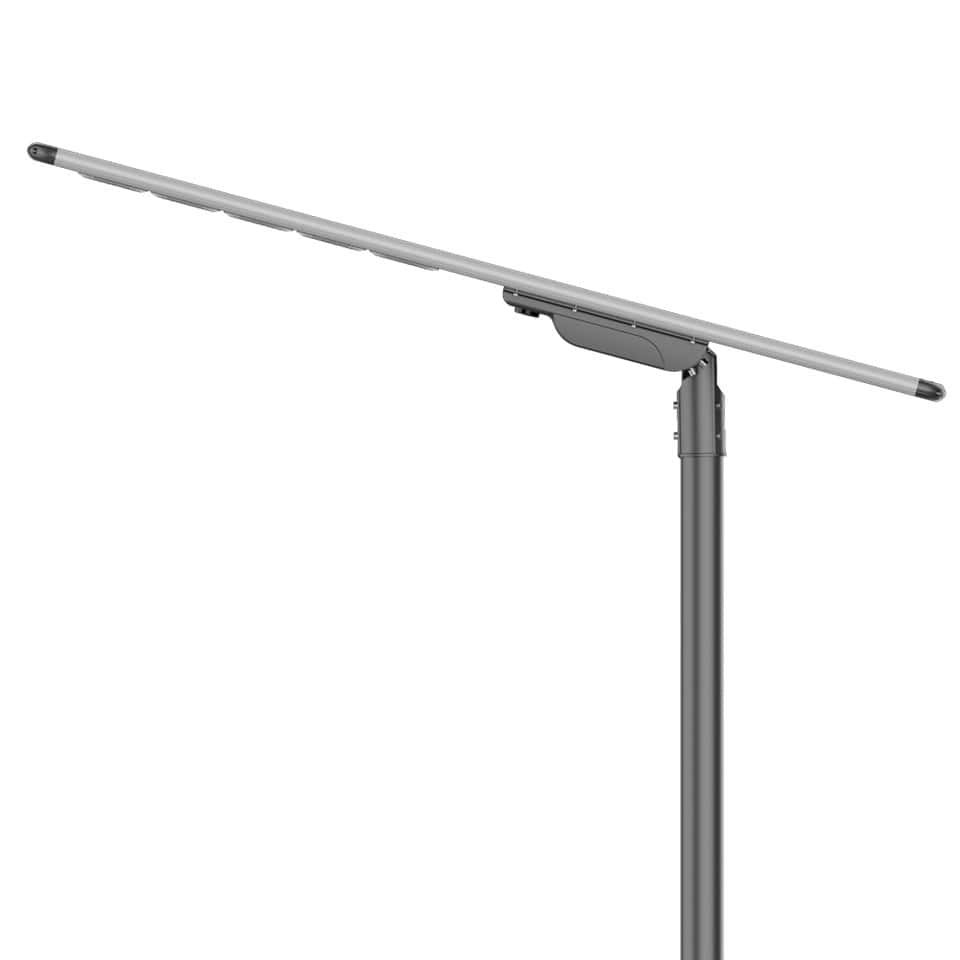

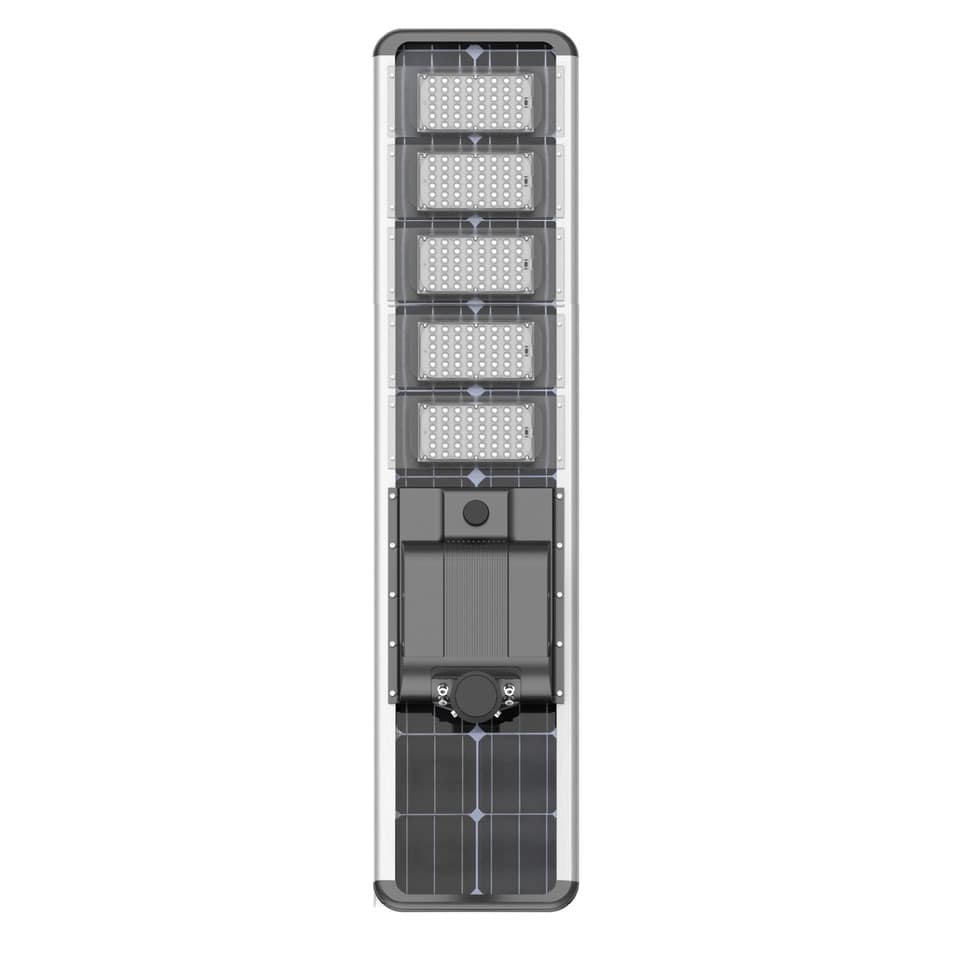

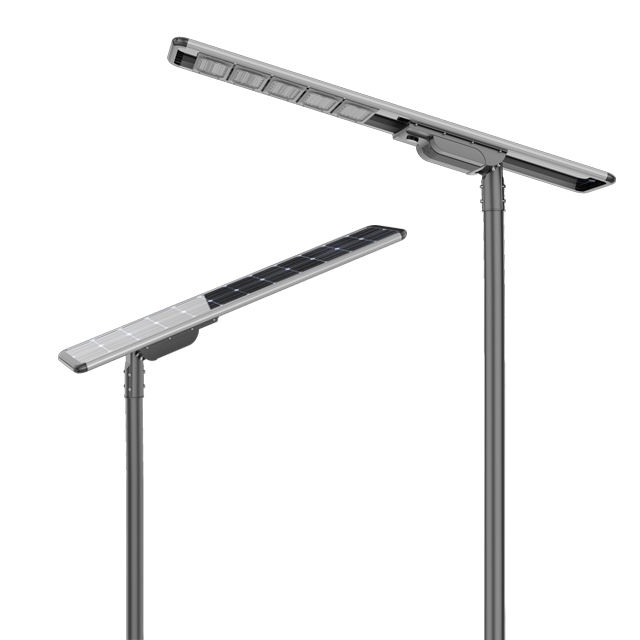

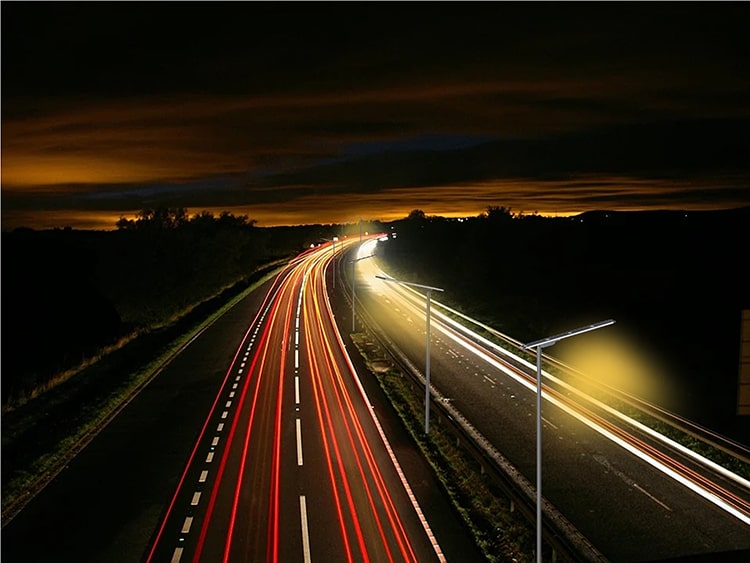

This all-in-one designed 100 watt solar powered street light with auto dusk to dawn light control and motion sensor, built-in 18v 130wp big mono solar panel and 12.8v 63ah large capacity lifepo4 battery, it can be fully charged with 6-8 hours and produce up to 10,000 lumens high brightness. It is an ideal solar led area light for street, road, highway etc.
100W Solar Street Lights - 10,000 Lumens Solar LED Area Lights
- All in One design,One step installation and FREE maintenance.
- High-efficiency up to 23% Mono Crystalline solar panel and Multi-busbar cell technology.
- Bridgelux chip SMD3030 LED chip,efficiency up to 210lm/w.
- LiFePO4 battery,>2,500 cycles @ 0.2C Charging/Dischargin at 90% DOD until 70% capacity.
- Aluminum Alloy body,Anti-Typhoo and Anti-Corrosion.
- Built-in intelligent BMS(Battery Management System) for battery protection.
Product Specifications:
| Product Name |
100W All In One Solar Street Light |
| Model No. |
SL-AIOFX-100W |
| LED Power |
100W |
| Luminous Flux |
170LM/W |
| Mono Solar Panel |
18V/130Wp |
| LiFePO4 Battery |
12.8V/63Ah |
| Color Temperature |
6000K-6500K(It can be customized) |
| Light Distribution |
TYPE II & TYPE III |
| Charge Controller |
MPPT Intelligent Controller |
| Control Mode |
Microwave sensor / Time control / On & Off button |
| Lighting Model |

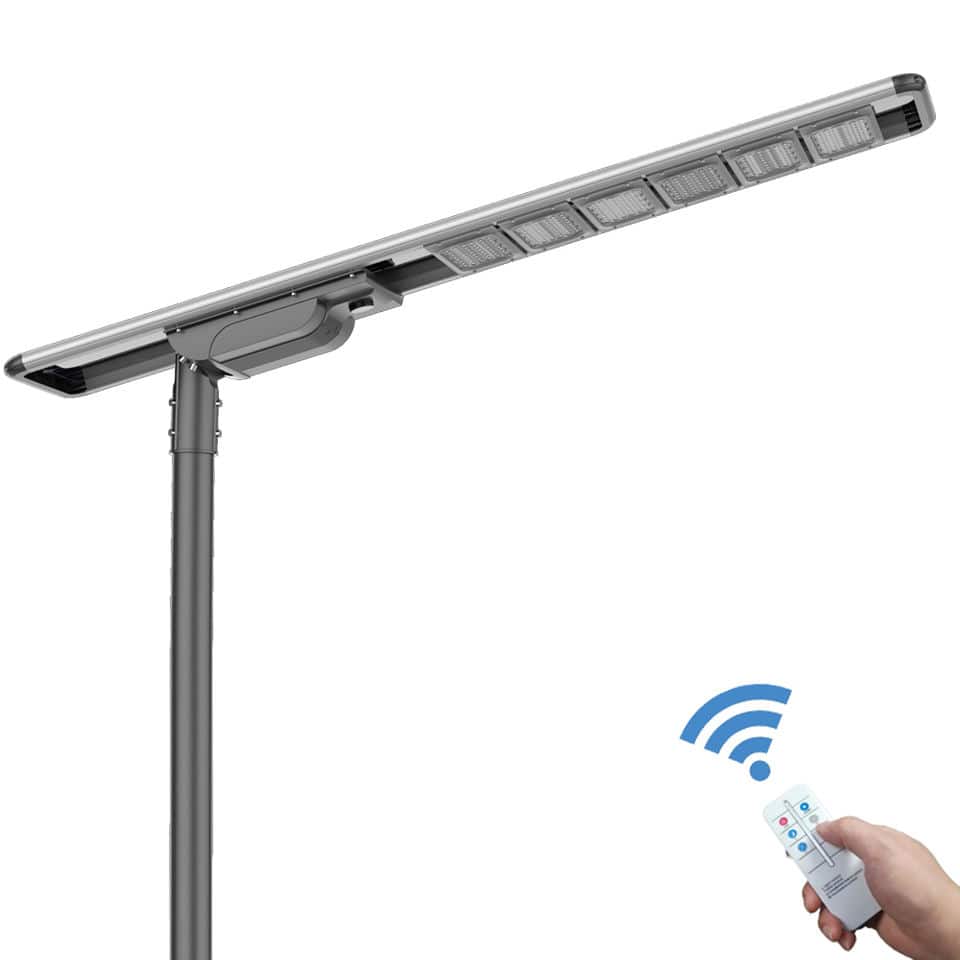

4 lighting models(Remote control),Customized |
| Cloudy / Rainy days |
3-5 cloudy / rainy days |
| Charging Time |
6-8 hours under strong sunshine |
| IP Rated / IK Rated |
IP65 / IK10 |
| Body Materials |
Aluminum Alloy |

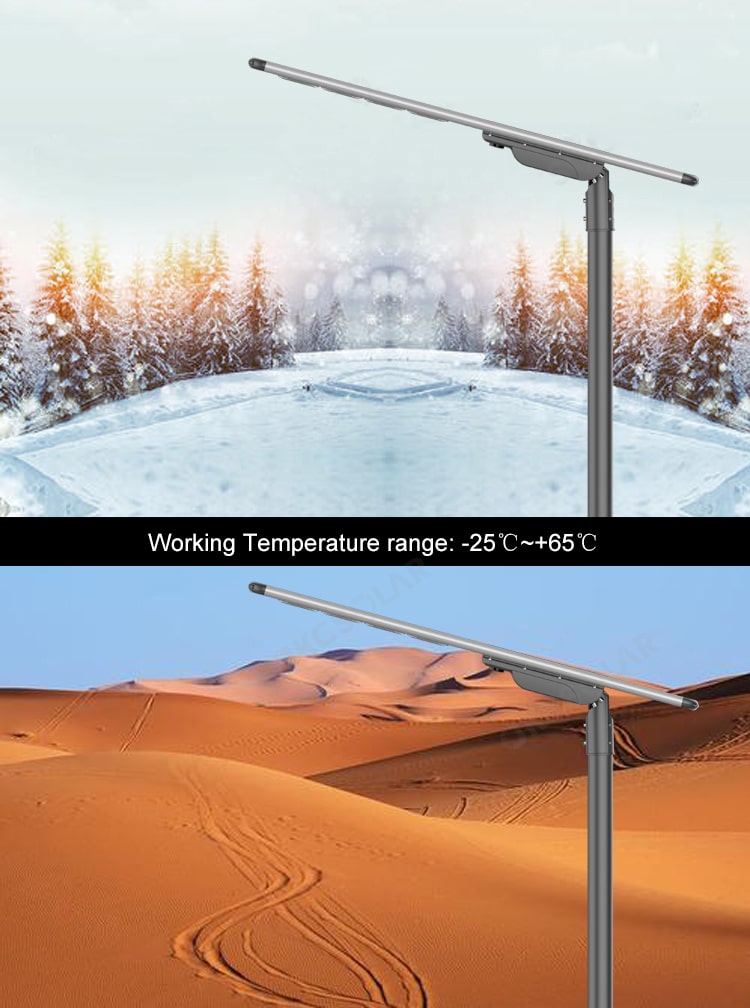

| Discharging Temp. |
-25℃ to +65℃ |
| Product Size |
1863*386*108mm |
| Packing Size |
1940*100*450mm |
| Gross Weight |
22Kg |
| Certificates |
CE,RoHs,IEC,LM80,IK10,IP65,MSDS |
| Warranty |
3 years / 5 years (365 days of lighting warranty) |
