The 60W split solar street light adopts all-in-two design, it uses a high-efficiency monocrystalline silicon solar panel to charge a large capacity lifePO4 battery, which can support 5-7 rainy days lighting.This 60W separated solar street light is the best solution for smart city iot system lora zigbee solar street light.

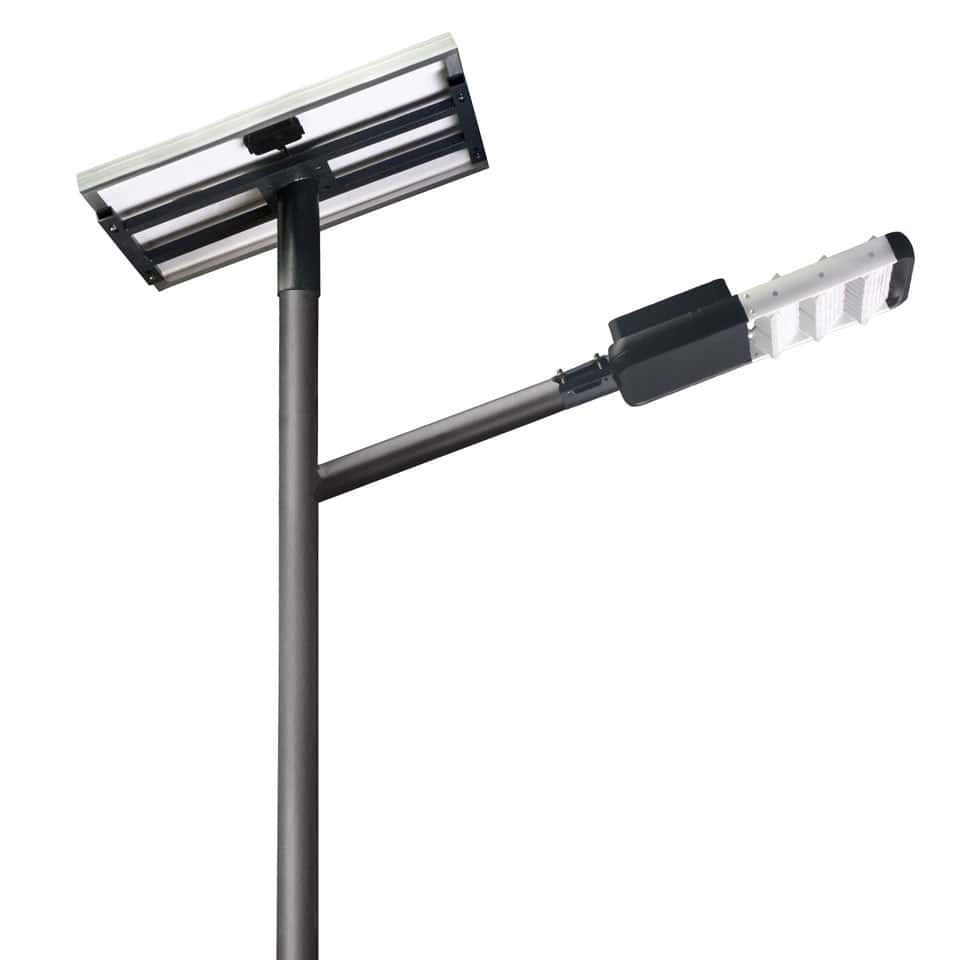

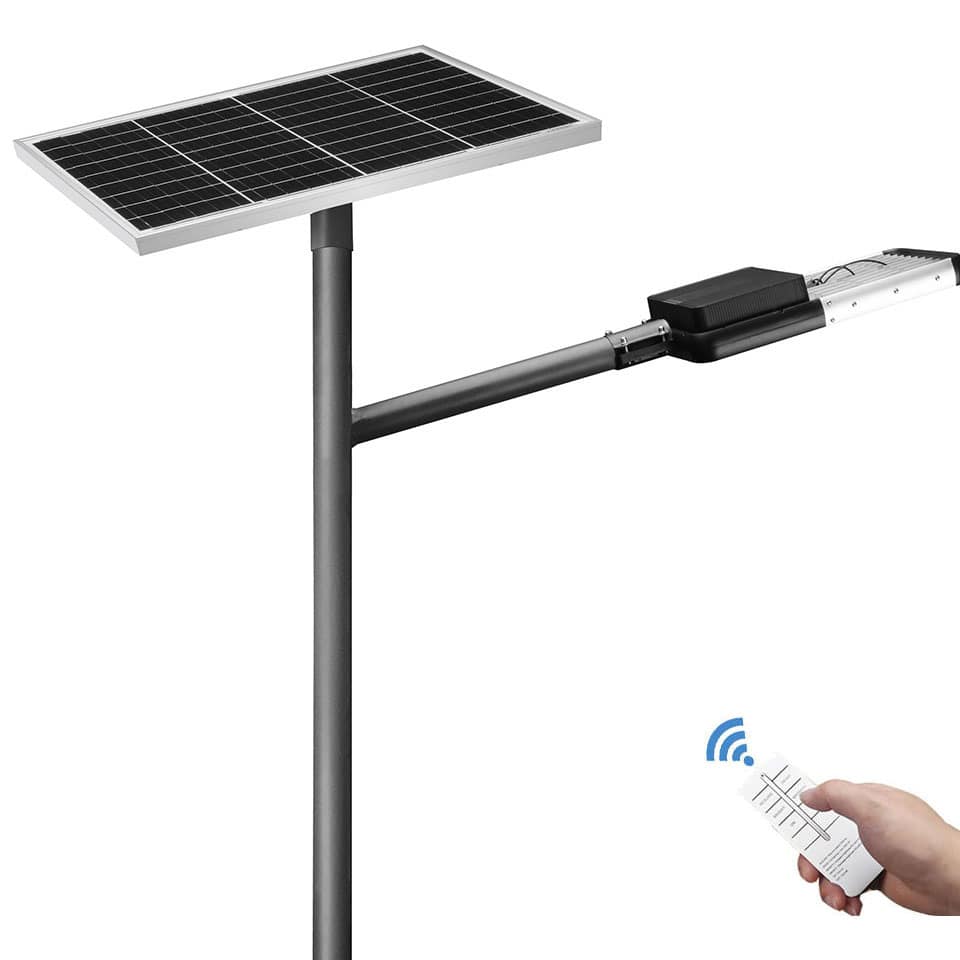

60W Split Solar Street Lights - 60 Watt All In Two Separated Solar Street Lights
- MPPT solar charge controller.Energy saving up to 90%.
- High-efficiency up to 23% 18V 80Wp Mono Crystalline solar panel and Multi-busbar cell technology.
- Bridgelux chip SMD3030 LED chip,efficiency up to 210lm/w.
- 12.8V 36Ah LiFePO4 battery,>2,500 cycles @ 0.2C Charging/Dischargin at 90% DOD until 70% capacity.
- Aluminum Alloy body,Anti-Typhoo and Anti-Corrosion.
- Built-in intelligent BMS(Battery Management System) for battery protection.
- Support more than 5-7 rainy days with the inteligent charge controller
Product Specifications:
| Product Name |
60W Split Solar Street Light |
| Model No. |
SL-AIT-60W |
| LED Power |
60W |
| Luminous Flux |
170LM/W |
| Mono Solar Panel |
18V/80Wp |
| LiFePO4 Battery |
12.8V/36Ah |
| Color Temperature |
6000K-6500K(It can be customized) |
| Light Distribution |
TYPE II & TYPE III |
| Charge Controller |
MPPT Intelligent Controller |
| Control Mode |
Microwave sensor / Time control / On & Off button |
| Lighting Model |
4 lighting models(Remote control),Customized |
| Cloudy / Rainy days |
5-7 cloudy / rainy days |
| Charging Time |
6-8 hours under strong sunshine |
| IP Rated / IK Rated |
IP65 / IK10 |
| Body Materials |
Aluminum Alloy |
| Discharging Temp. |
-25℃ to +65℃ |
| Product Size |
665*280*100mm |
| Packing Size(Lamp) |
700*330*150mm |
| Packing Size(Solar Panel) |
750*620*80mm |
| Gross Weight |
15Kg |
| Certificates |
CE,RoHs,IEC,LM80,IK10,IP65,MSDS |
| Warranty |
3 years / 5 years (365 days of lighting warranty) |
