The 100w split solar street light can produce up to 17,000 lumens, it is an excellent light source choice for the urban and rural street areas. It adopts monocrystalline silicon solar panel and large capacity LiFePO4 battery, which can work stably on 5-7 rainy days and cold days. Digital power controllers can protect circuits better. Its LED module is SMD3030, excellent color rendering index, and low power consumption which up to 210LM/W.

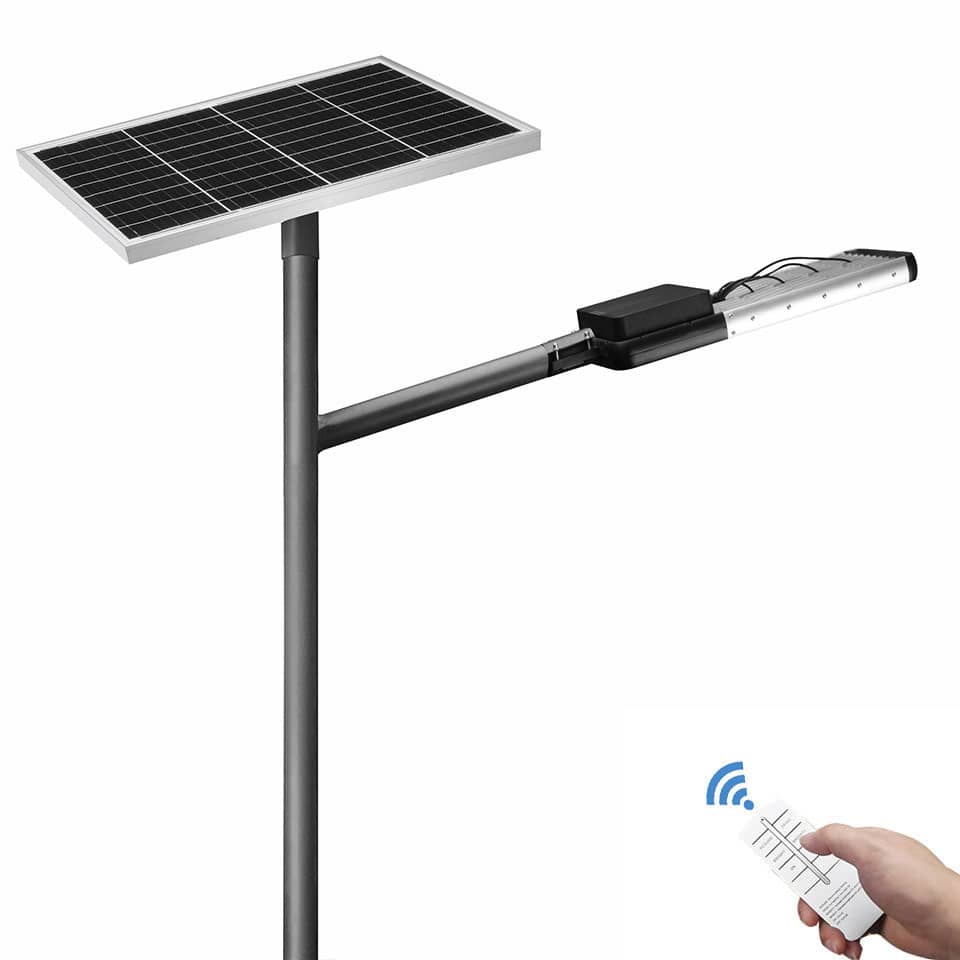

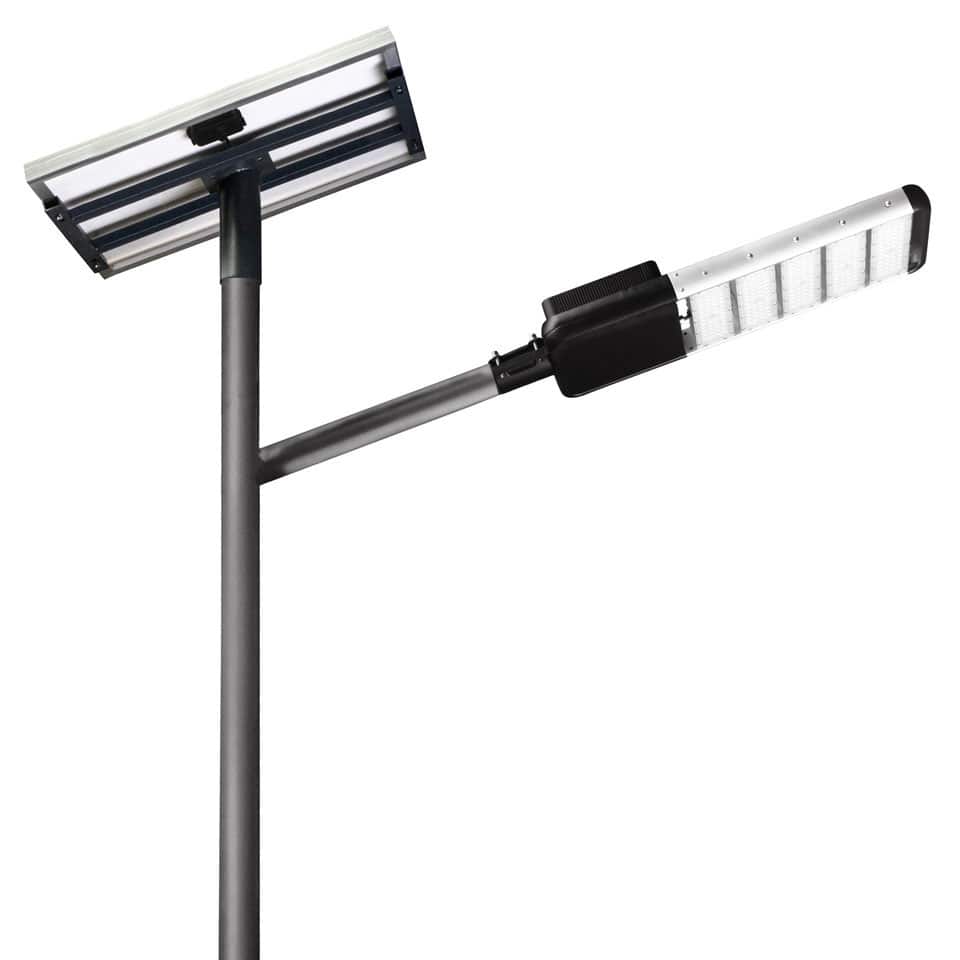

Outdoor Split Solar Street Light 100W Motion Sensor IP65 Waterproof Street Lamp with Remote Controller

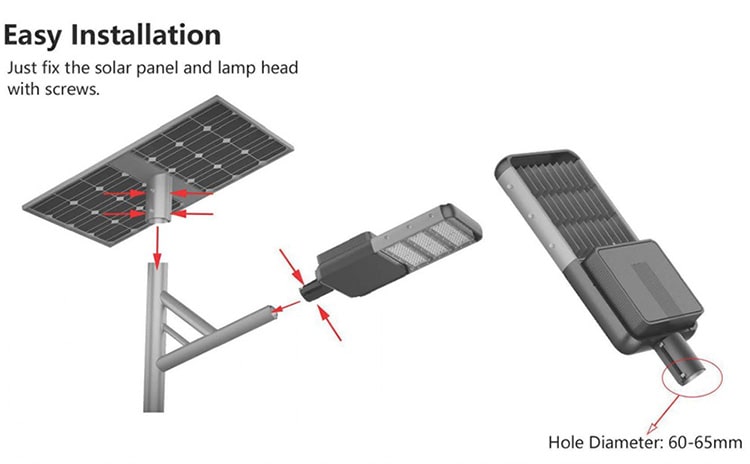

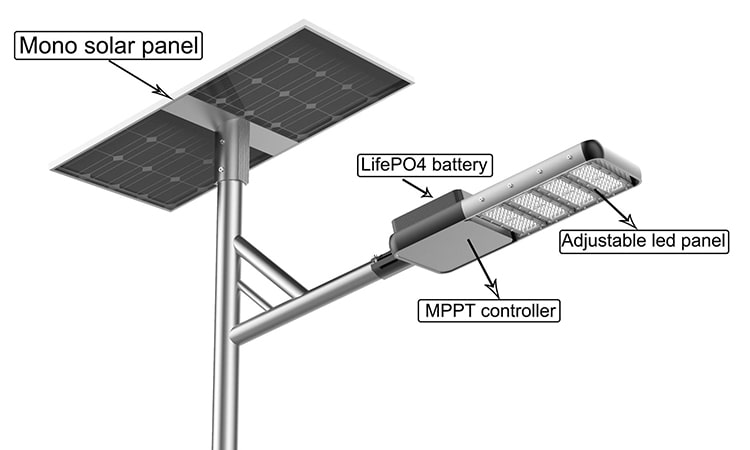

- All in two designs, one step plug-in for wiring connection, easy to install and maintain.
- High-efficiency up to 23% Mono Crystalline solar panel and Multi-busbar cell technology.

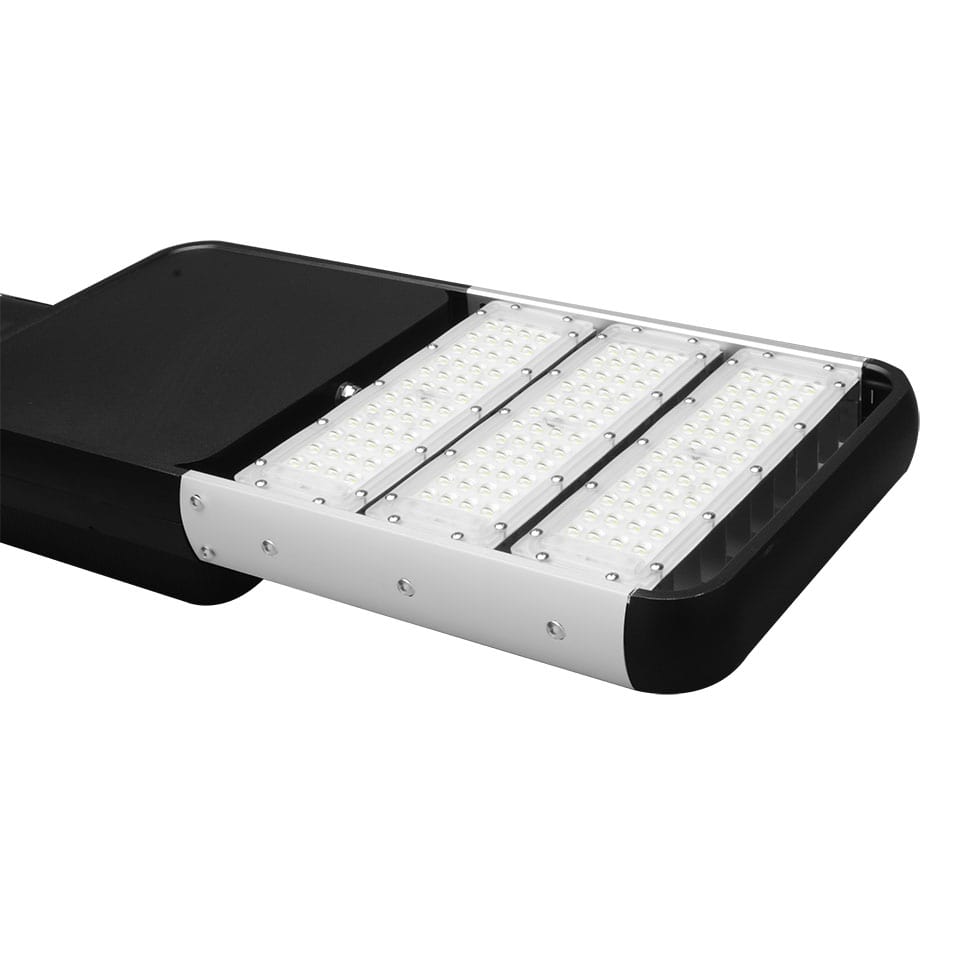

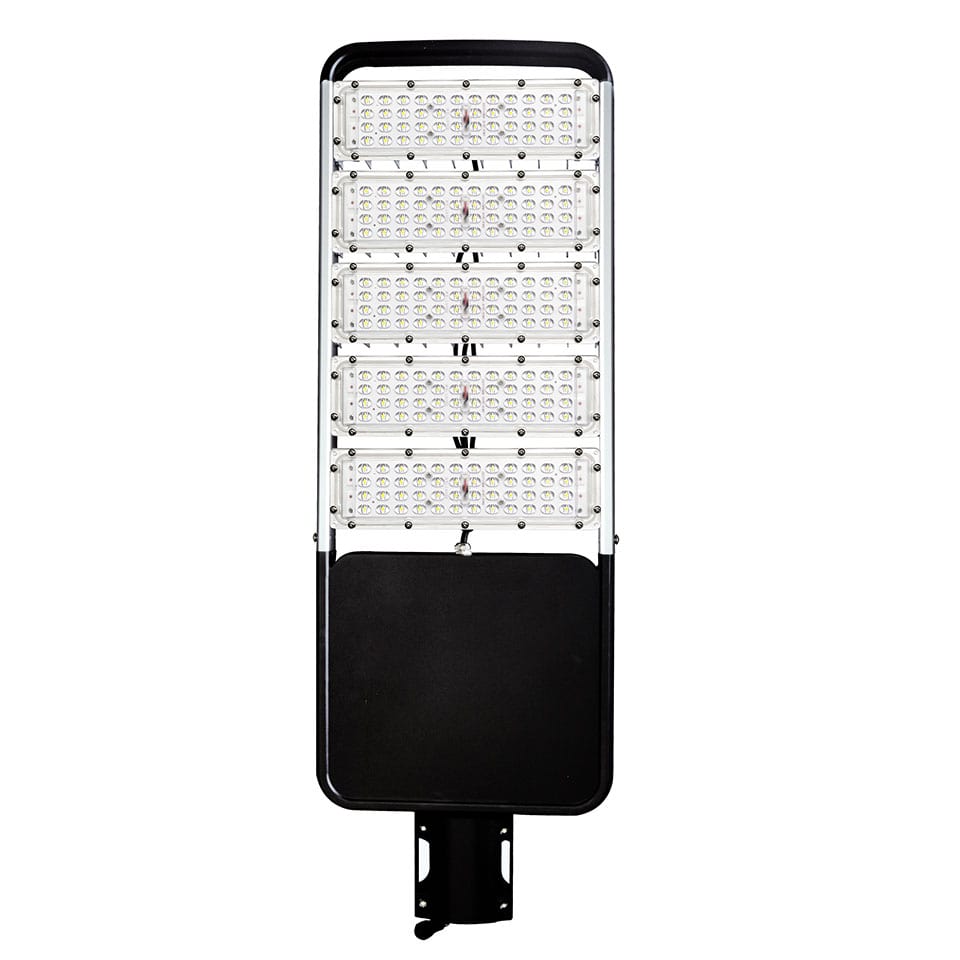

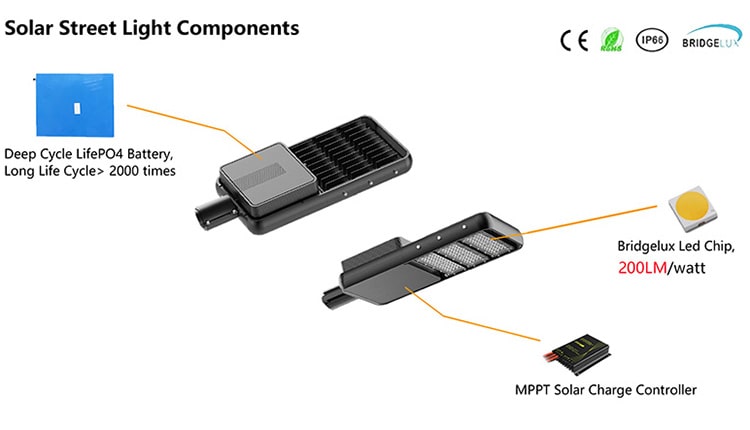

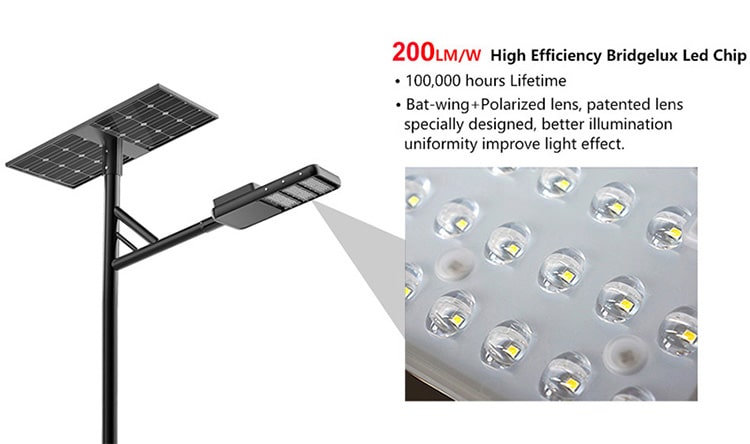

- Bridgelux chip SMD3030 LED chip,efficiency up to 210lm/w.
- LiFePO4 battery,>2,500 cycles @ 0.2C Charging/Dischargin at 90% DOD until 70% capacity.
- Aluminum Alloy body,Anti-Typhoo and Anti-Corrosion.
- Built-in intelligent BMS(Battery Management System) for battery protection.
- Support more than 5-7 rainy days with the inteligent charge controller
Product Specifications:
| Product Name |
100W Split Solar Street Light |
| Model No. |
SL-AIT-100W |
| LED Power |
100W |
| Luminous Flux |
170LM/W |
| Mono Solar Panel |
18V/130Wp |
| LiFePO4 Battery |
12.8V/54Ah |
| Color Temperature |
6000K-6500K(It can be customized) |
| Light Distribution |
TYPE II & TYPE III |
| Charge Controller |
MPPT Intelligent Controller |
| Control Mode |
Microwave sensor / Time control / On & Off button |
| Lighting Model |

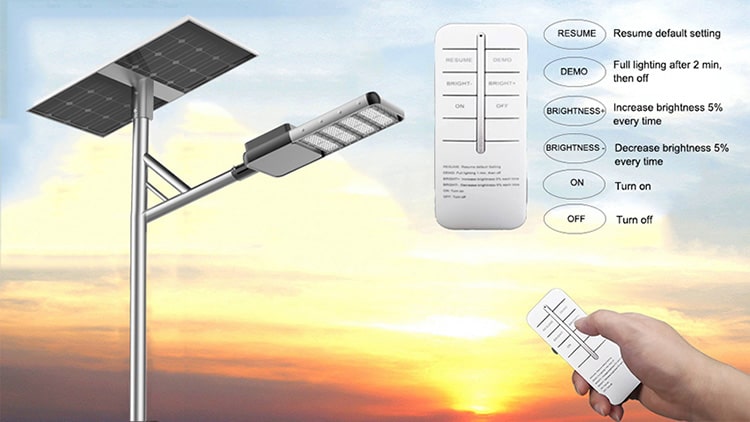

4 lighting models(Remote control),Customized |
| Cloudy / Rainy days |
5-7 cloudy / rainy days |
| Charging Time |
6-8 hours under strong sunshine |
| IP Rated / IK Rated |
IP65 / IK10 |
| Body Materials |
Aluminum Alloy |

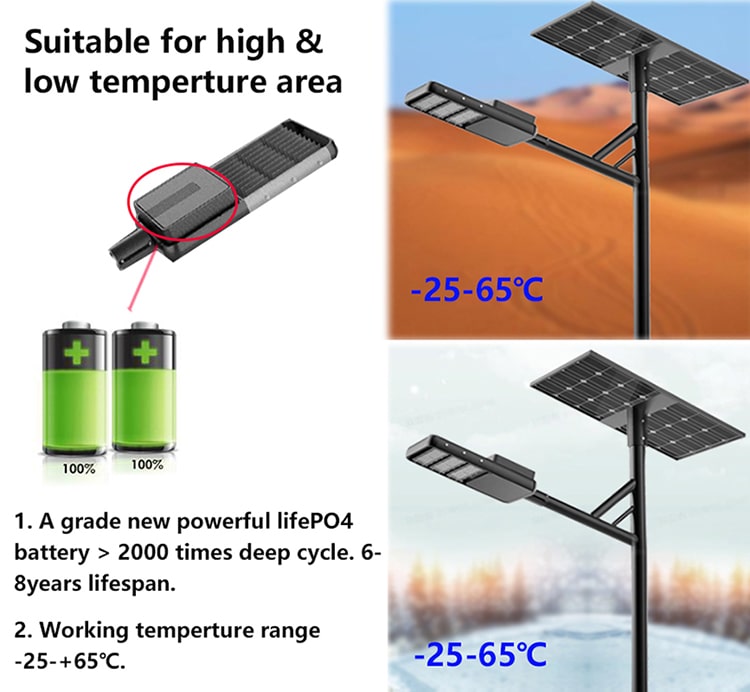

| Discharging Temp. |
-25℃ to +65℃ |
| Product Size |
845*280*100mm |
| Packing Size(Lamp) |
880*330*150mm |
| Packing Size(Solar Panel) |
1200*750*80mm |
| Gross Weight |
23Kg |
| Certificates |
CE,RoHs,IEC,LM80,IK10,IP65,MSDS |
| Warranty |
3 years / 5 years (365 days of lighting warranty) |
