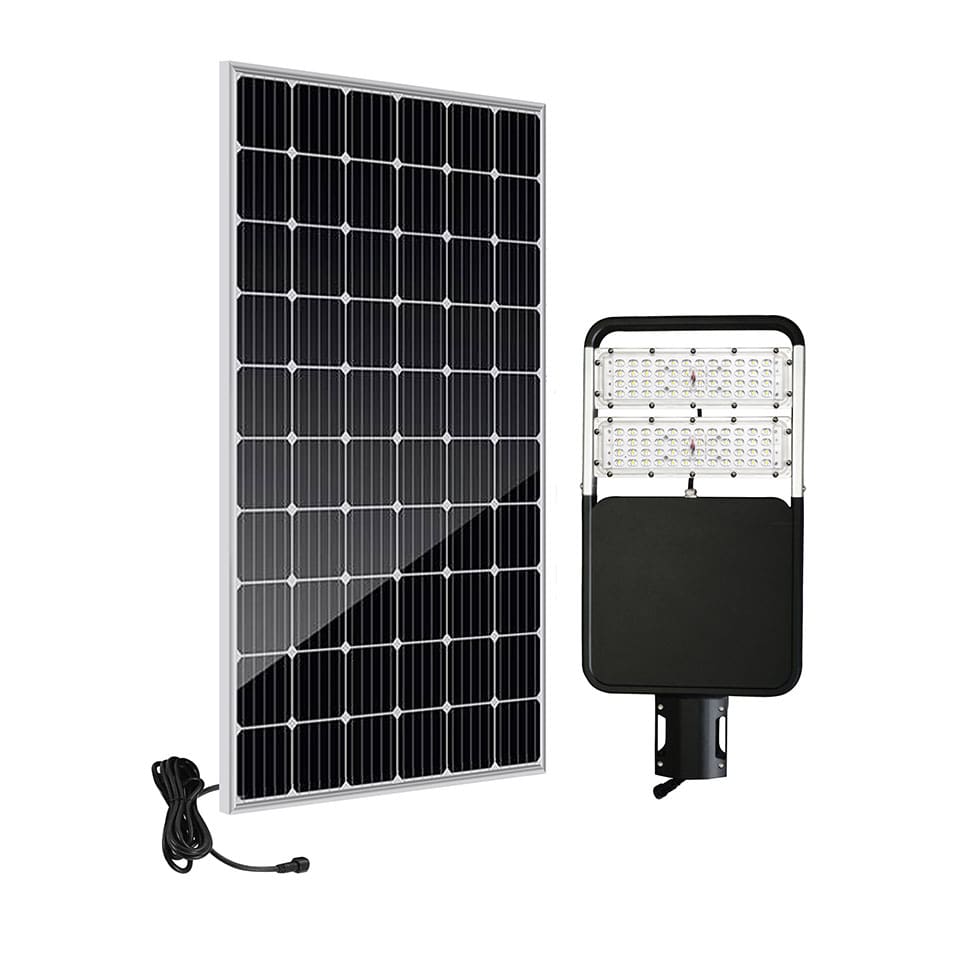

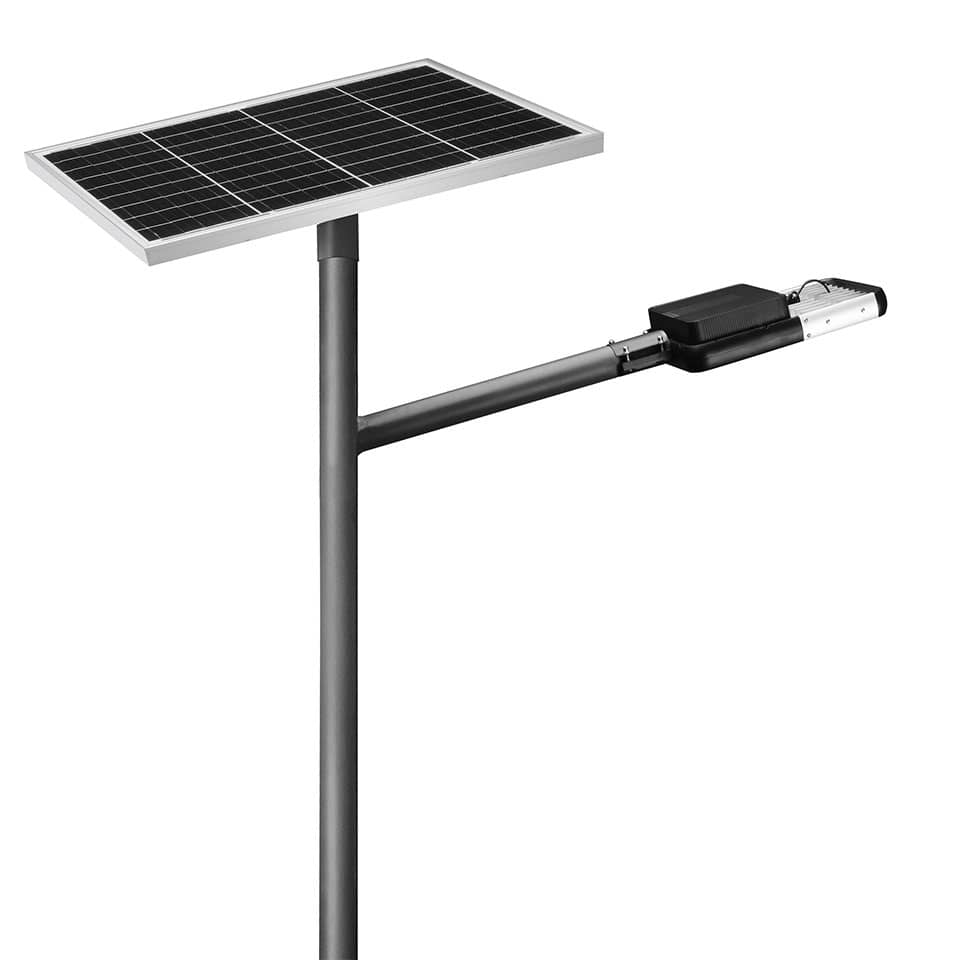

The 40w split solar street light adopts all in two design, the LiFePo4 battery and light controller are built into the LED street lamp body, and the mono solar panel is installed on the upper bracket of the lamp body separately. The main advantage of this 40w all in two solar street lights is that the direction of solar panel can be adjusted towards the sun.
All In Two Solar Street Lights 40W Split Solar LED Street Lamp
- MPPT solar charge controller.Energy saving up to 90%.
- High-efficiency up to 23% 18V 50Wp Mono Crystalline solar panel and Multi-busbar cell technology.

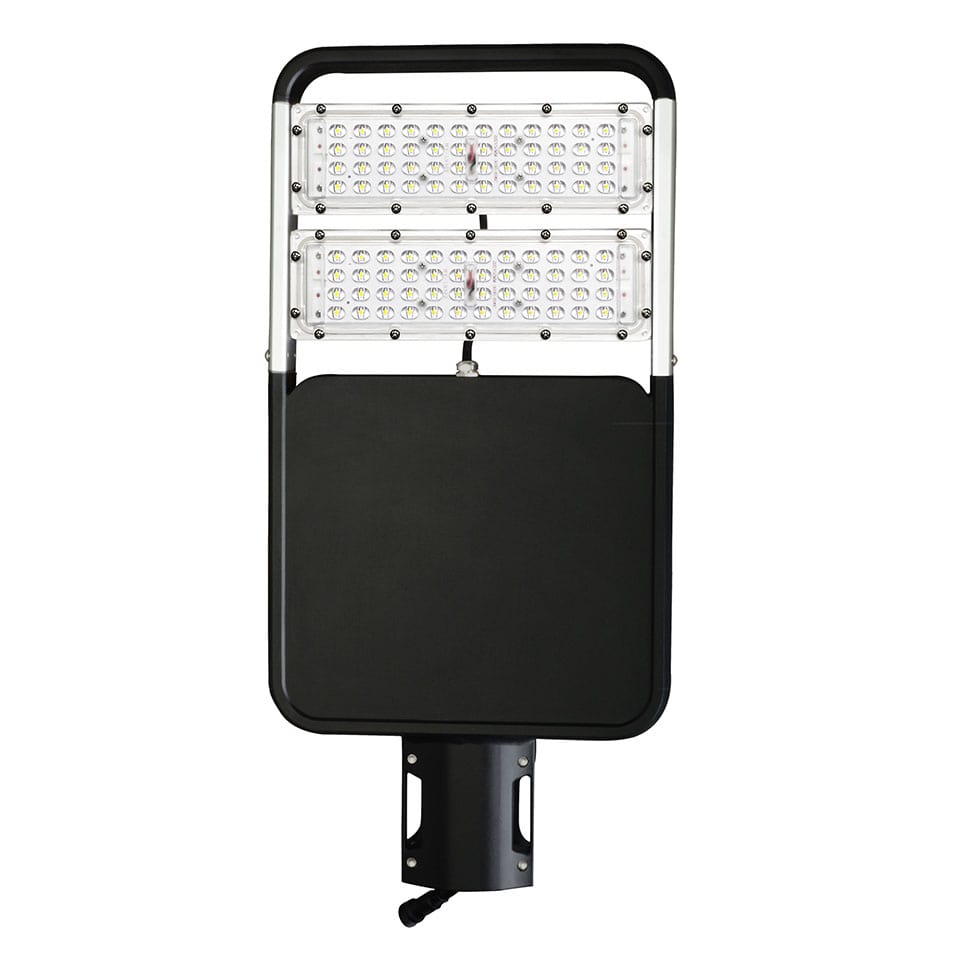

- Bridgelux chip SMD3030 LED chip,efficiency up to 210lm/w.
- 12.8V 24Ah LiFePO4 battery,>2,500 cycles @ 0.2C Charging/Dischargin at 90% DOD until 70% capacity.
- Aluminum Alloy body,Anti-Typhoo and Anti-Corrosion.
- Built-in intelligent BMS(Battery Management System) for battery protection.
- Support more than 5-7 rainy days with the inteligent charge controller
Product Specifications:
| Product Name |
40W All In Two Solar Street Light |
| Model No. |
SL-AIT-40W |
| LED Power |
40W |
| Luminous Flux |
170LM/W |
| Mono Solar Panel |
18V/50Wp |
| LiFePO4 Battery |
12.8V/24Ah |
| Color Temperature |
6000K-6500K(It can be customized) |
| Light Distribution |
TYPE II & TYPE III |
| Charge Controller |
MPPT Intelligent Controller |
| Control Mode |
Microwave sensor / Time control / On & Off button |
| Lighting Model |

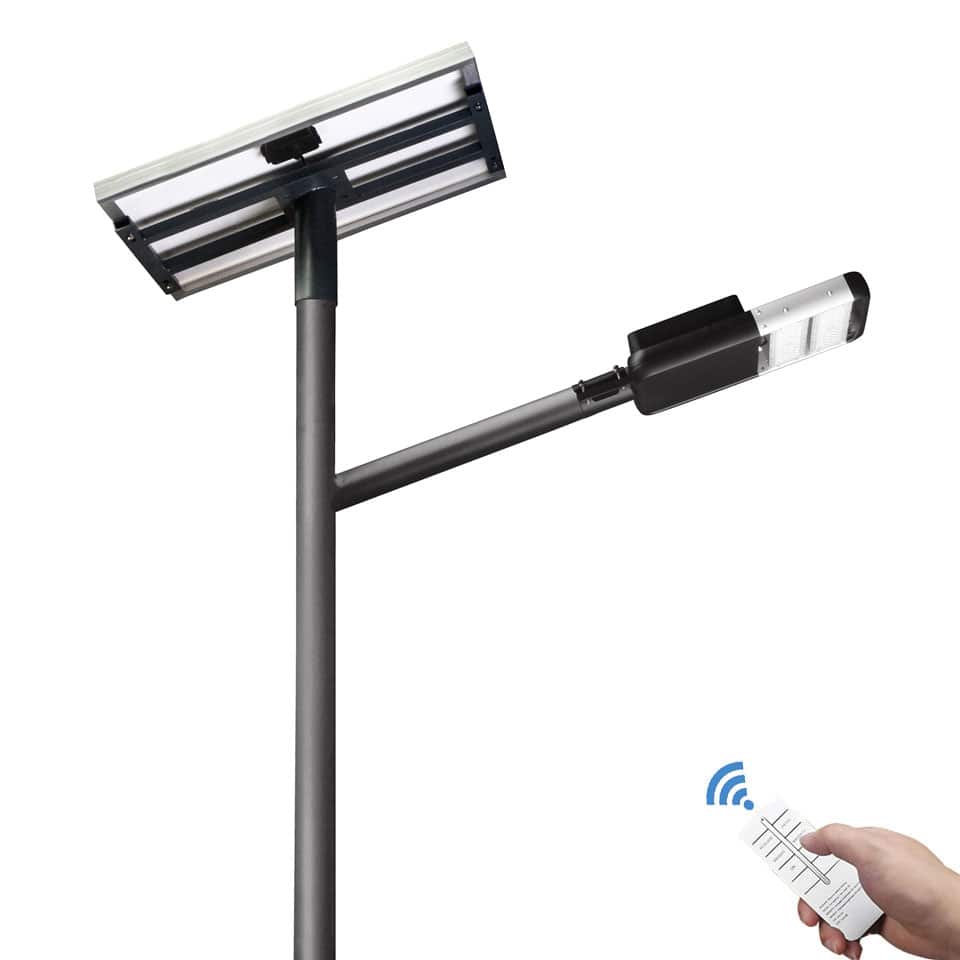

4 lighting models(Remote control),Customized |
| Cloudy / Rainy days |
5-7 cloudy / rainy days |
| Charging Time |
6-8 hours under strong sunshine |
| IP Rated / IK Rated |
IP65 / IK10 |
| Body Materials |
Aluminum Alloy |
| Discharging Temp. |
-25℃ to +65℃ |
| Product Size |
575*280*100mm |
| Packing Size(Lamp) |
610*330*150mm |
| Packing Size(Solar Panel) |
750*530*80mm |
| Gross Weight |
11Kg |
| Certificates |
CE,RoHs,IEC,LM80,IK10,IP65,MSDS |
| Warranty |
3 years / 5 years (365 days of lighting warranty) |
